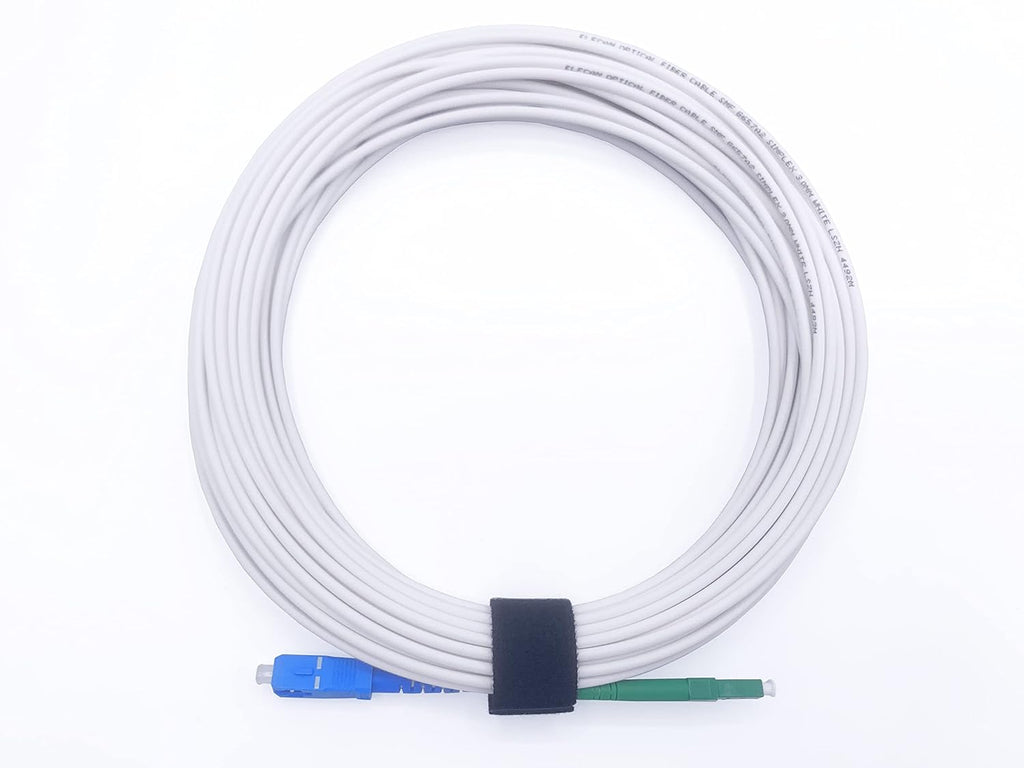

Fiber Optic Cable LC/APC to SC/UPC OS2 Simplex Singlemode LSZH, White (2M)
Reliable shipping
Flexible returns

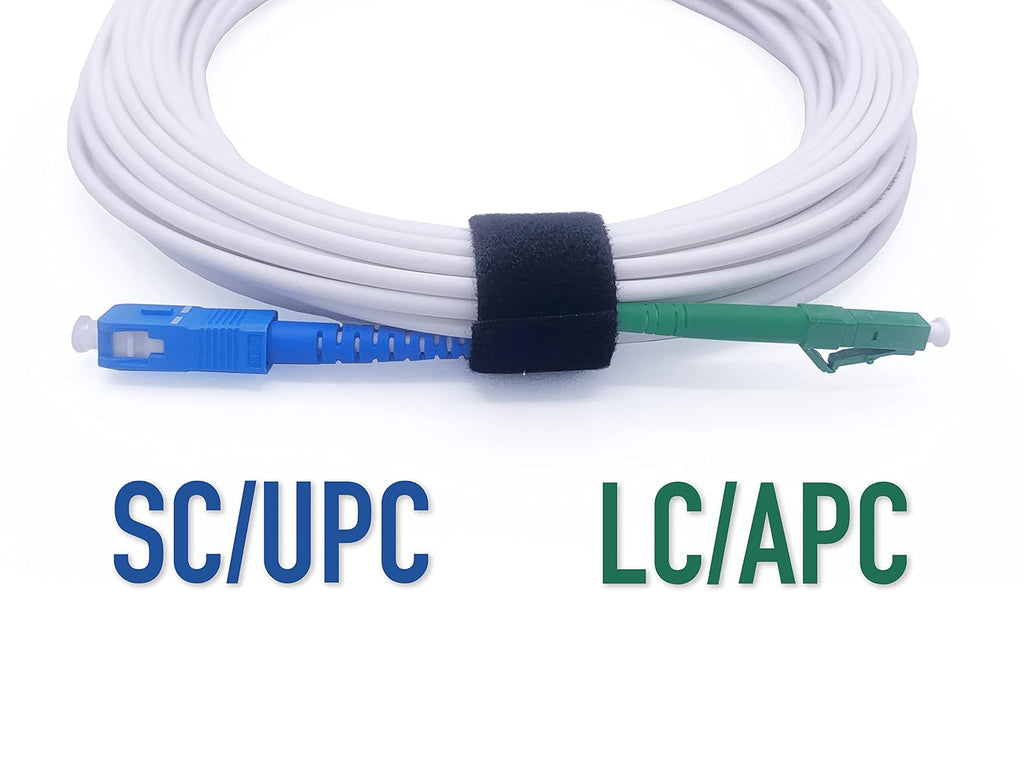

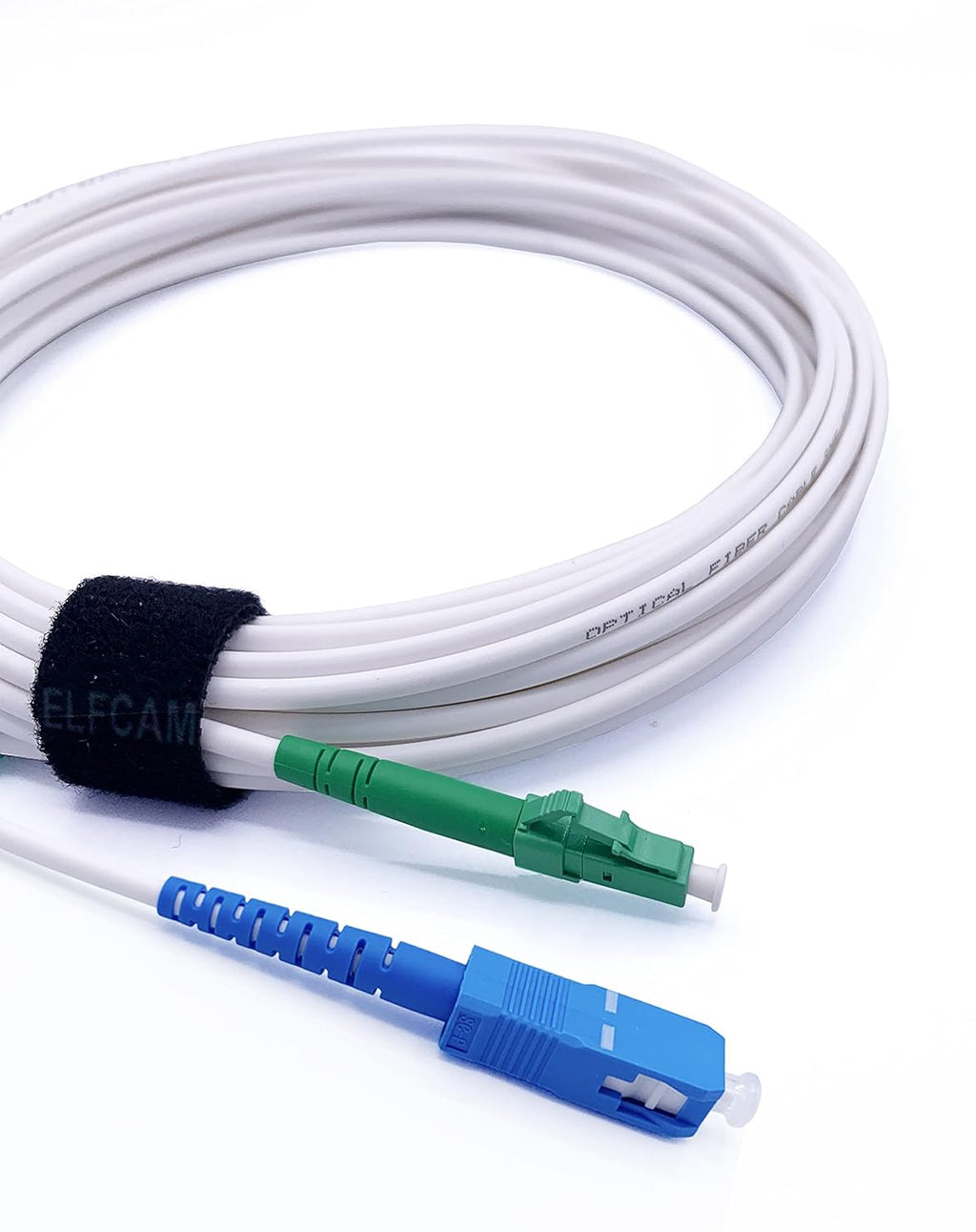

- OS2 singlemode simple fiber optic cable LC/APC to SC/UPC, It has LC/APC connector on one end and SC/UPC connector on the other end.
- Lower Insertion Loss ( ≤0.2dB ) and High Return Loss (≥60dB). Cable diameter: 3 mm. Cable verified 100% of first quality and LSZH (Low Smoke Halogen Free).
- Fiber optic patch cables LC/APC to SC/UPC are ideal for use in telecommunications (CATV, ODF, FTTH, FTTB, FTTC) and for enterprise data center.
- Comply with G657A2: High flexibility makes it easy to install in indoor spaces. Available in different lengths; Max 100 Meters.
- Warranty: 10 years . High quality customer service (24/7 service in EU). Welcome to contact our support service email: contact@elfcams.com.
Product Description
Fibre optic LC/APC to SC/UPC
Elfcam - Fibres, Transceivers und Pro Tools
- LWL OS2 SC/APC, LC/APC LC/UPC, E2000/APC, SC/UPC
- OS2/OM3 Duplex LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, E2000/APC
- 1,25G SFP, 2,5G SFP, 10G SFP, 25G SFP28, 40G QSFP, 100G QSFP28
- 1Gb AOC/DAC, 10Gb AOC/DAC,25Gb AOC/DAC, 40G AOC/DAC, 100G AOC/DAC
- Fibre optic welder, Kevlar scissors，Optical multimeter,Fibre optic cable tester, etc.
Elfcam - Fibre optic cable LC/APC to SC/UPC polishing
Optical fibre LC/APC of the highest quality for Deutsche Telekom
- Patch cable singlemode (OS2) simplex for Deutsche Telekom
- Fibre optic cable as a patch cable forms the connection between the house transfer point (HÜP) and the fibre optic modem (ONT) in the indoor area.
- This 9/125μm OS2 single-mode fibre optic patch cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet
- Fibre optic cable equipped with dust caps, connector: simplex, fibre type: OS2, SM singlemode 9/125µm according to ITU T G.657.A2/B2, minimum bending radius: 7.5mm.
| Fibre | Singlemode Simplex 9/125µm G657A2/B2 |

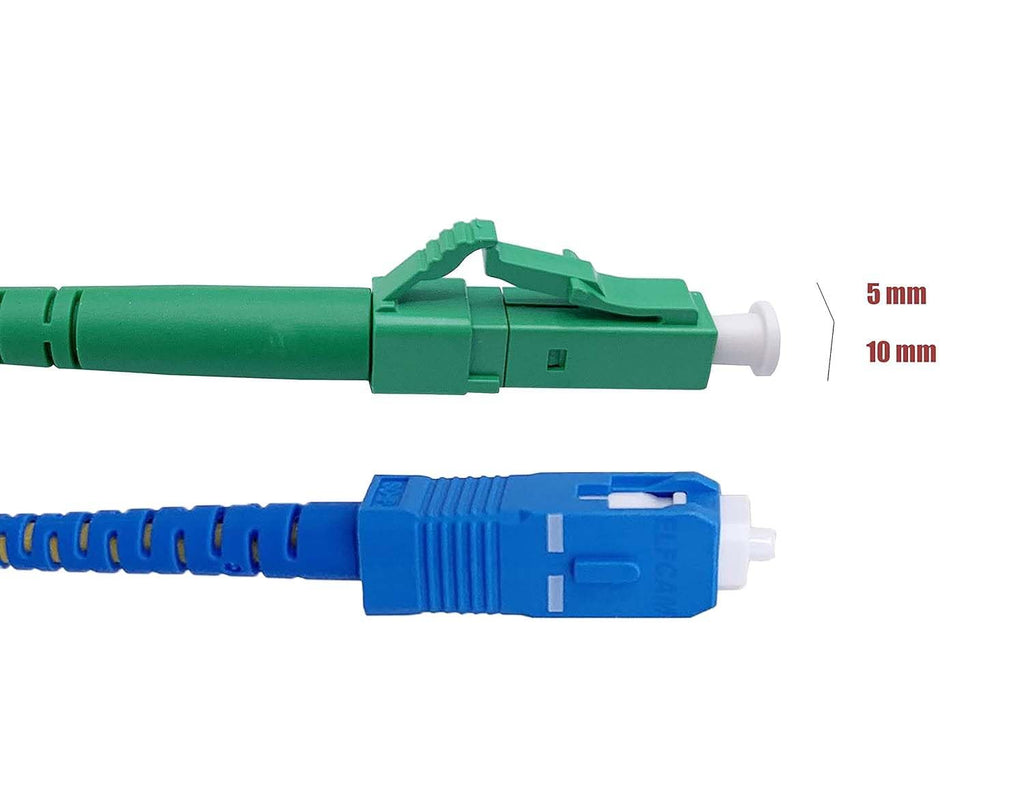

| Plug type A | LC/APC polishing |
| Type B plug | SC/UPC Polishing |
| Outer radius | 3,0mm |

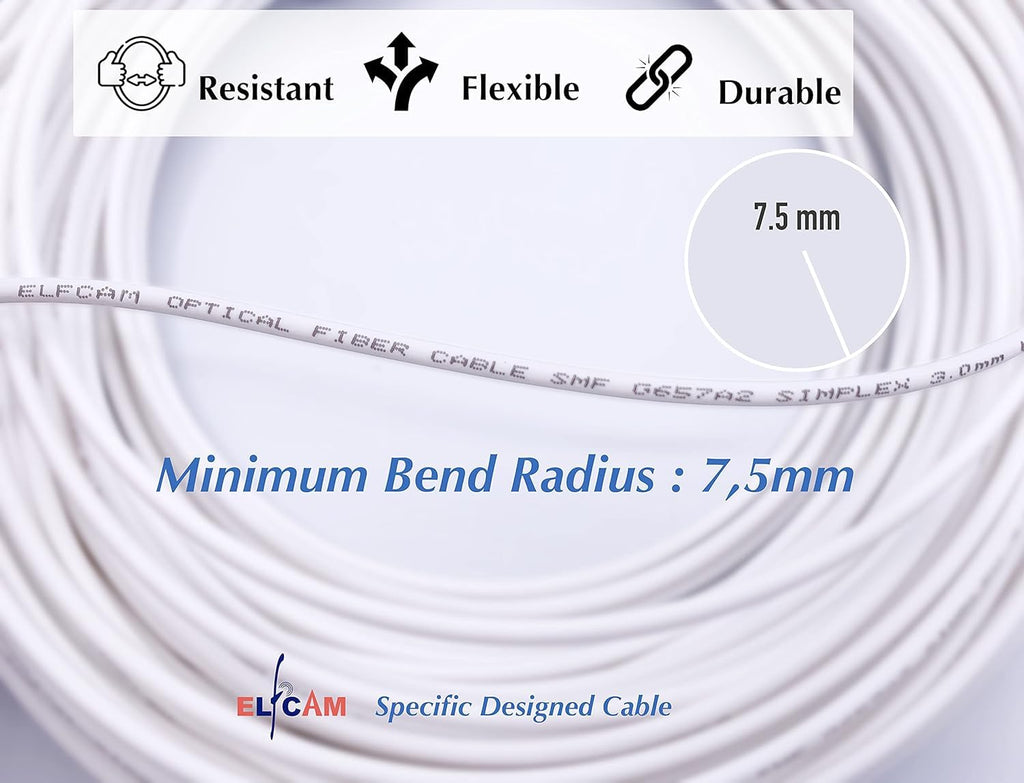

| Minimum bending radius | 7,5mm |
| Material | LSZH, Zirconia Ceramic |
| Wavelength | Single Mode 1310nm, 1550nm |
| Attenuation IL | ≤0.30dB |
| Attenuation RL | ≥60dB (APC) |
| Temperature range | -40°C to +85°C |
| Compatible | Deutsche Telekom fibre optic modem |
| Colour cable | White |
FTTH = fibre to the home -> fibre optic connection for the home
The 9/125μm OS2 singlemode fibre optic patch cable has a diameter of 3mm instead of the usual 2mm, which makes the cable significantly less sensitive as more material is used for the protective sheath.
Telecommunications providers are increasingly focusing on FTTH fibre optic connections for private homes - fibre optics are becoming the standard for new builds. Providers connect the house transfer point (HÜP) and the fibre optic modem with a supplied cable. The average diameter of the connector provided is usually 1.6 mm. Rather thin, it reacts sensitively to mechanical damage and is more likely to have defects. And with a cracked cable, even the fastest fibre optic cable is useless. nexinex has therefore developed robust FTTH connectors with halogen-free outer sheaths in various lengths, which also allow the modem to be placed in a different location!.
