Access Control Outswinging Door 600Lbs Force Electromagnetic Lock & Remote Control Kit
$156.25
Reliable shipping
Flexible returns
- ✅It is mainly used for customers that do not want to physically get up and open the door.With this system, you will be able to let people in by clicking on the RF remote. The remote communicates with the receiver, which can program up to 40 remotes, and it has a range of 164 feet.
- ✅280kg holding force electromagnetic lock offers reliable performance.
- ✅The remote communicates with the receiver to let people in
- ✅0/5/10 seconds locking delay time adjustable, default is 5 seconds
- ✅This magnetic lock system also brings an exit button that will allow you to exit from the inside of the door.
Product Description
DESCRIBE
- The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can program up to 40 transmitter, and it has a range of 160ft (50m).
- The function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the mag lock will unlock temporarily to open the door.
- 0/5/10 seconds locking delay time adjustable, default is 5 seconds.
- An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.

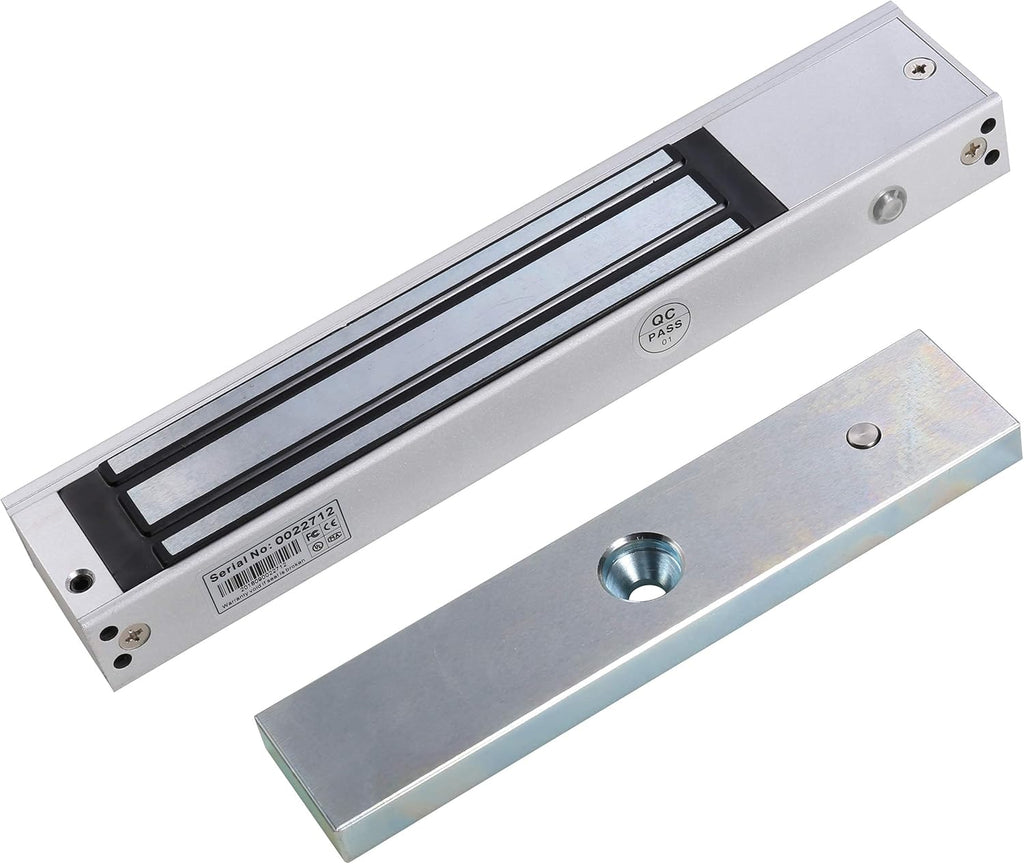

ELECTRIC MAGNETIC LOCK
- Input Voltage: 12VDC
- Current: 520mA
- Holding Force: 600lbs (280kg)
- Fail Safe mode: Unlocked while power is removed
- Lock Body Size: 9-27/32"x1-59/64"x1-3/32" (250x48.8x27.9mm)
- Armature Plate Dimensions: 7-3/32"x1-17/32"x33/64" (180x38.8x13mm)

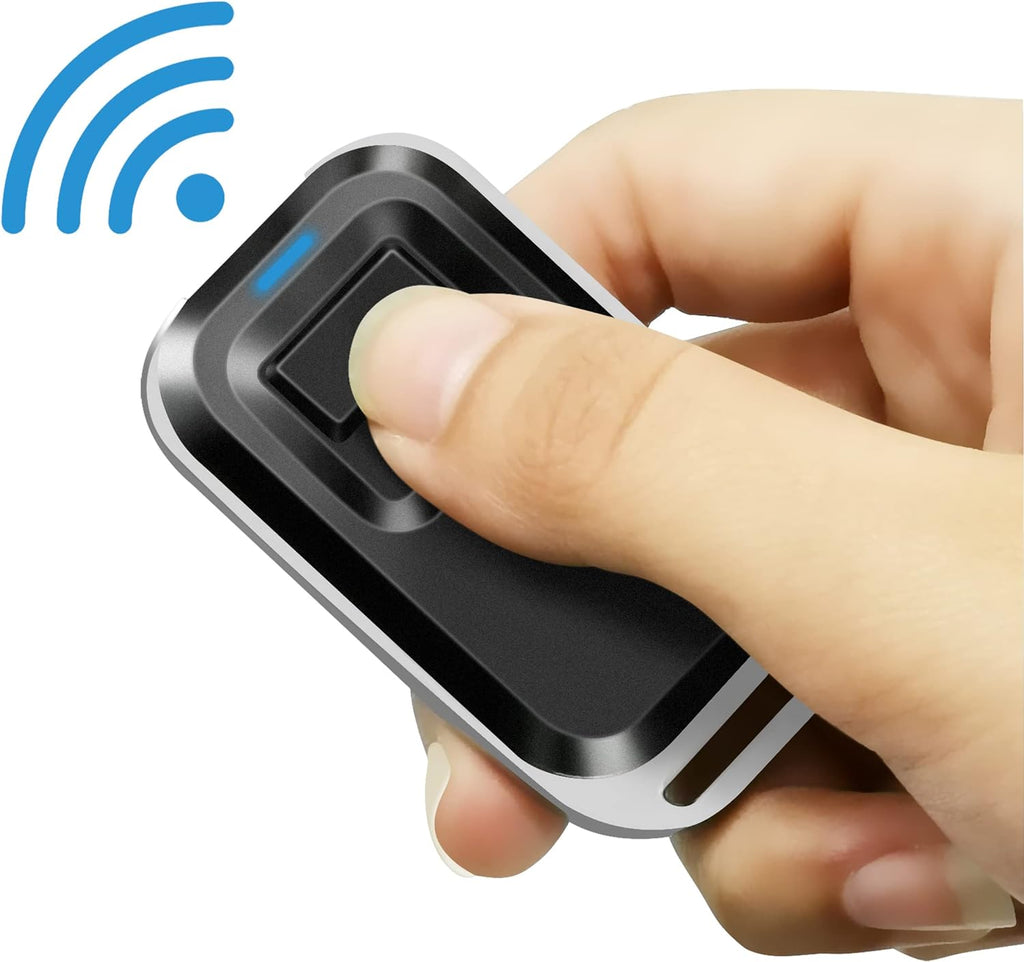

REMOTE TRANSMITTER
- Working voltage: 6VDC
- Operating Current: 3mA
- Powered by: 2pcs CR2016/3V batteries (Built-in)
- Service Life of the Battery: 50,000 cycles tested
- Transmitting Frequency: 433MHZ
- Buton: 1
- Enclosure Material: ABS Plastic
WARM TIP
- Armature plate installed too tight will lead to result the lock weak force, recommend loosen the armature plate screws a little in this case.

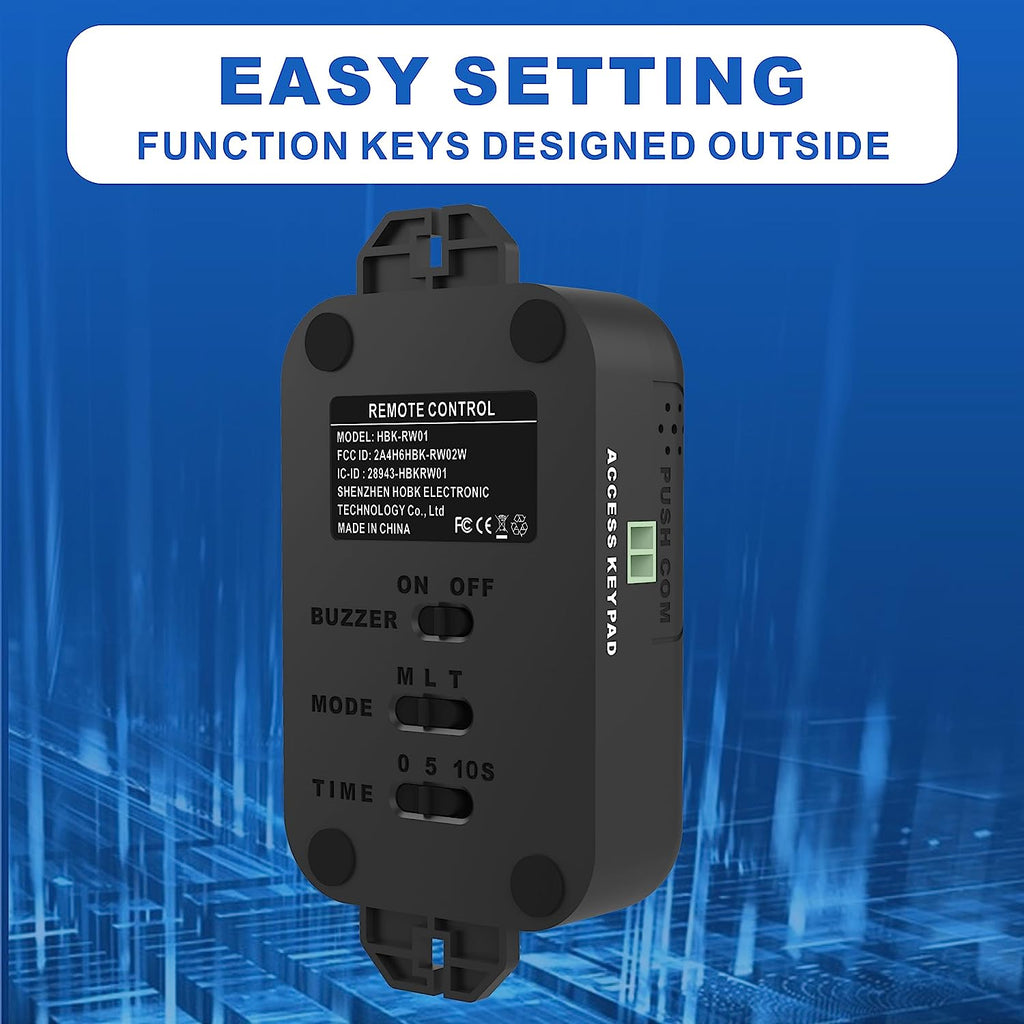

REMOTE CONTROL
- Voltage: 12VDC
- Frequency: 433MHz
- RF Channel: 1
- Transmitter Support: Max. 40
- DC Encoding Type: Learning code
- Working Range: 164ft (50m) in open area, 15%-30% in reality
- Adjustable Locking Delay: 0/5/10sec
- Working Mode: Momentary/Toggle
- Enclosure Material: ABS Plastic

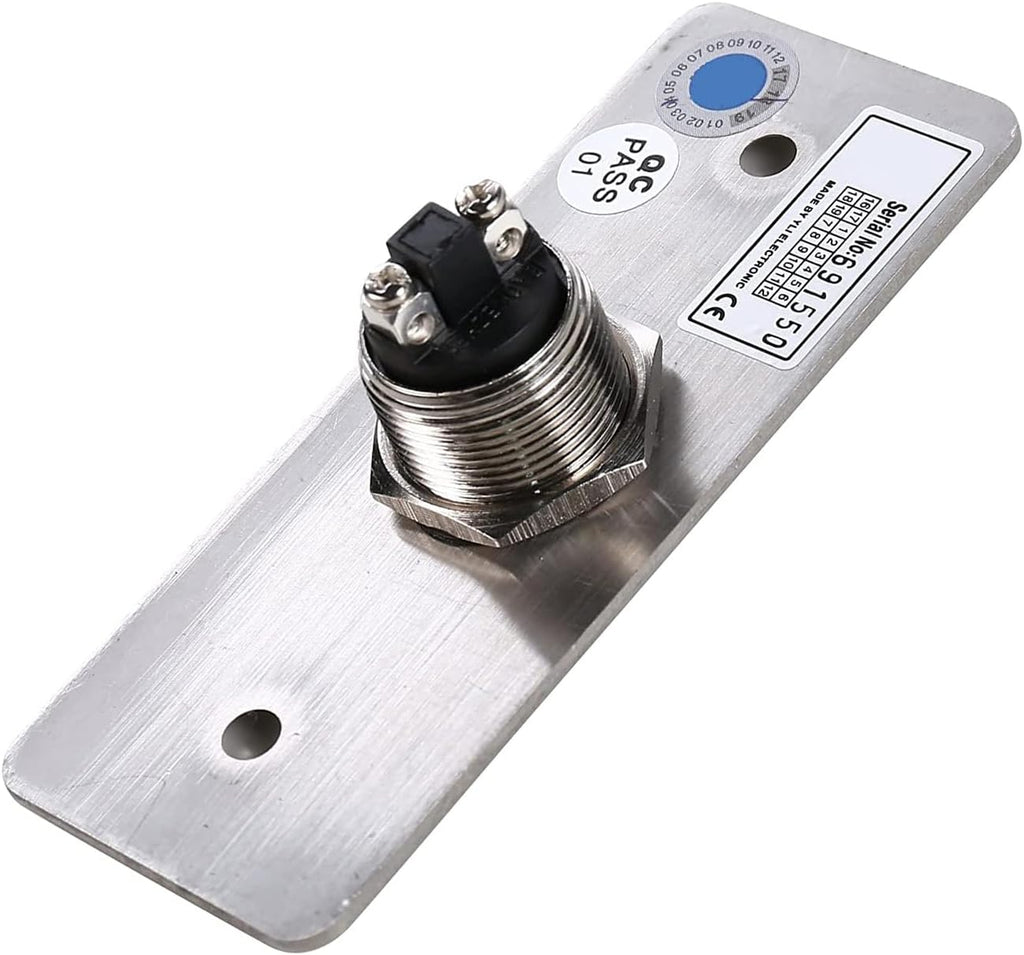

EXIT BUTTON
- Dimensions: 3-35/64"x1-3/8"x1-3/64" (90x35x26.5mm)
- Standard Structure: Stainless steel panel, steel button
- Mechanical Life: 500,000 tested
- Current Rating: 3A@36VDC Max.
- Output Contact: NO/COM
- Operating Temperature: 14℉~131℉ (-10℃~55℃)
- Operating Humidity: 0-95% (relative humidity)
- Panel Material: Stainless steel panel, wire drawing finished
- Suitable for hollow door

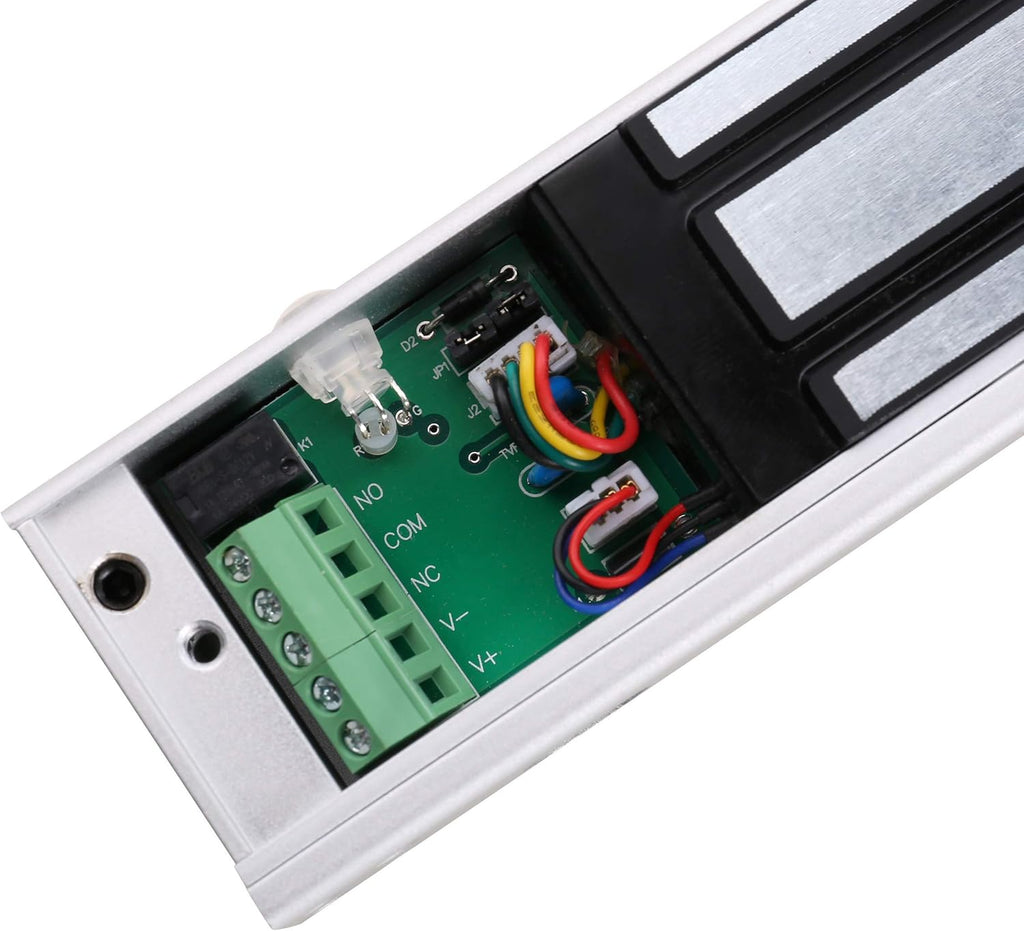

ELECTROMAGNETIC LOCK
- Collinear load test 600lbs (280kg)
- Output Contact: NO/NC/COM
- LED: Red shows locked; Green shows unlocked
- MOV provides reverse current protection
- Cover Finish: Anodized aluminum
- Lock Finish: Zinc
- Armature Plate Finish: Zinc
POWER ADAPTER
- Input: AC100V-240V 50/60Hz
- Max Output: DC12V/1A (1000mA)
- AC Cord Length: 4 feet (1.2 meters)
- Wire Type: 22AWG
- Output Transformer Adapter: 7/32"x5/64" (5.5x2.1mm) [Inside diameter 5/64" (2.1mm), Outside diameter 7/32" (5.5mm)]
- Net Weight: 2.3oz (66g)

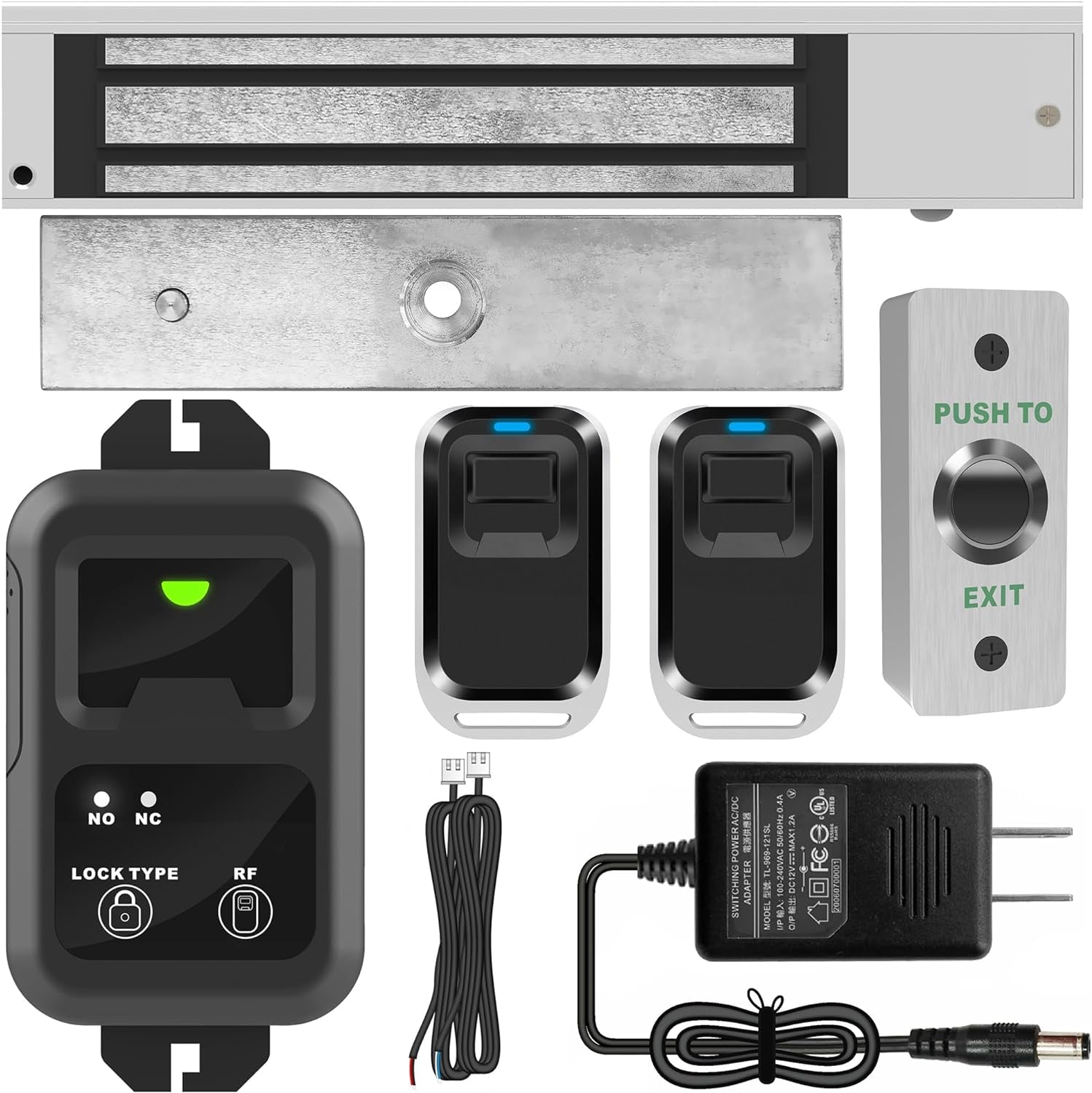

PACKAGE
- 1 x Electric Magnetic Lock

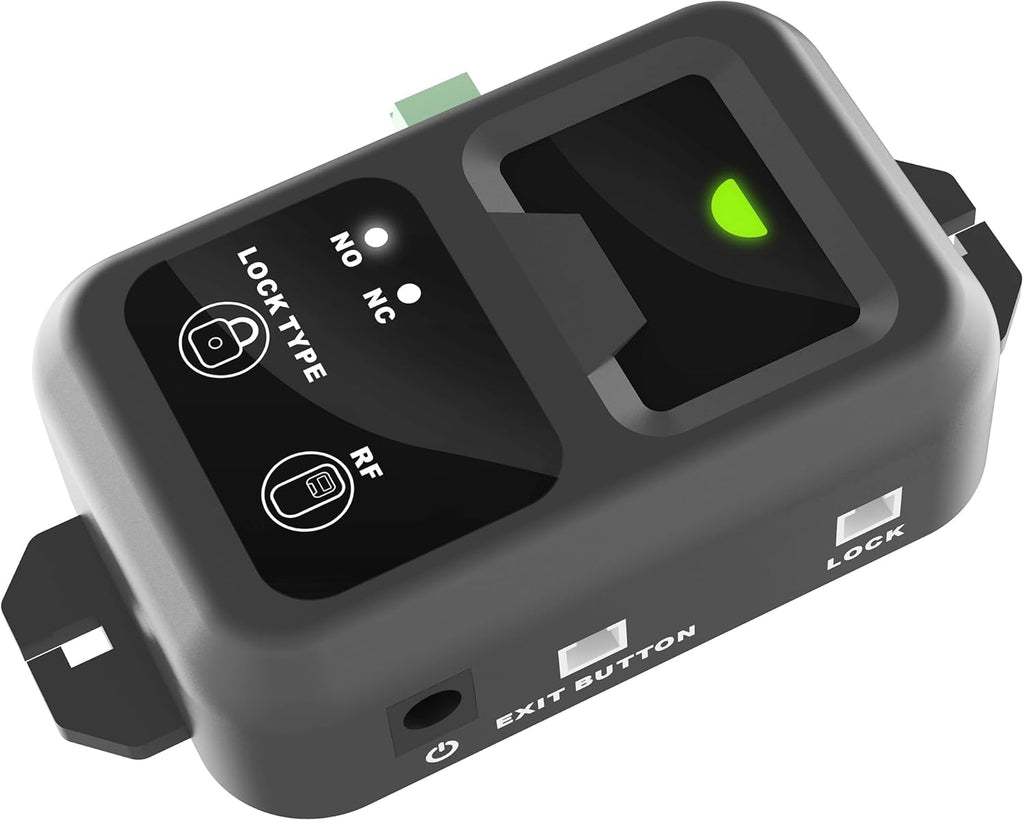

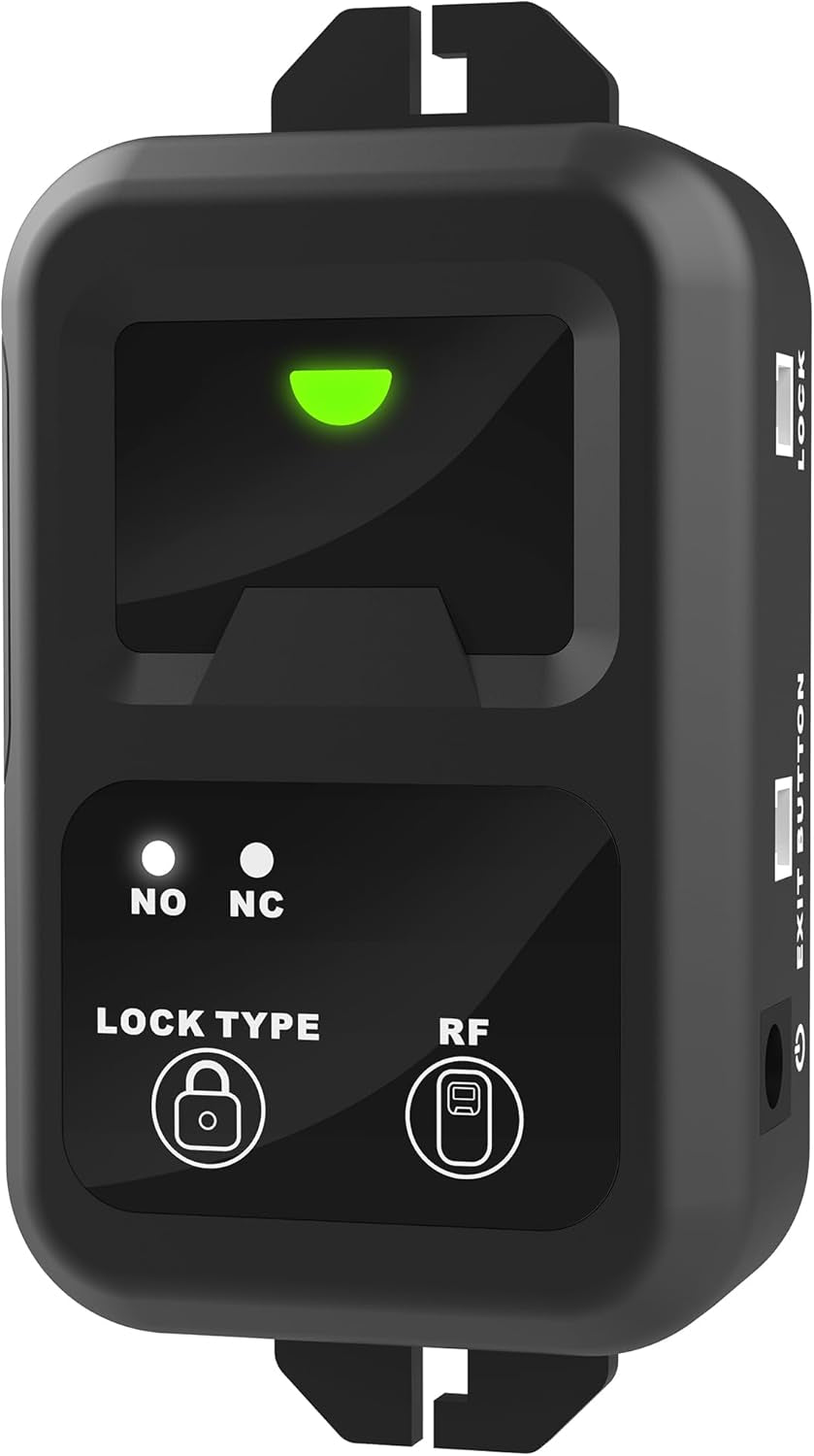

- 1 x Remote Receiver
- 2 x Remote Transmitter
- 1 x Push to Exit Button
- 1 x Power Adapter
- 1 x English User Manual
- Tips: Please search ASIN B07DVY4BB2 to get more transmitters.
WIRING DIAGRAM
OPERATING SETTINGS
- Clear Code: Tap and hold RF icon for 8 seconds until the indicator changes from green to red, indicating the clear code is successful.
- Pairing Transmitter and Receiver: Tap RF icon followed by press the button on the remote transmitter within 20 seconds.
