1500W Power Inverter DC 12V to 240V AC - Car Power Converter 3000W Peak with 2 USB Ports, UK Outlets, Remote Controller and Cooling Fan
$164.61
Reliable shipping
Flexible returns
- WHY CHOOSE IT: This EDECOA energy-saving Power Inverter can convert 12V DC battery power to 220V/ 230V/ 240V AC household power. Modified Sine Wave Power Converter is reliable for Resistive Load. Ideal for RV, Boat, Auto Battery, Solar System and most other off grid applications. No-load current consumption is <0.5A.
- POWER: DC working voltage is 10-15V. USB each port provides 5V/2.1A. AC Sockets provide 1500W Continuous Power / 3000W Peak Power (<10ms). Simply wire the power inverter to a 12V battery and then connect it to devices.
- COMPATIBILITY: USB ports can run mobile phone, tablet, charger and more electronics. AC Sockets can run TV, LED light, DVD player, toaster, oven, electric kettle, mini car fridge and more appliances within the power range (Inversion Efficiency 90%).
- FEATURES: On / Off Remote Controller can be used for monitoring battery and voltage. When the inverter temperature is 45℃+, 3 Silent Cooling Fans will start automatically to dissipate heat and save battery power. Rugged Aluminum Case for a wild environment.
- MULTI-PROTECTION: Alarm for Overload, Overheating, Short Circuit and Reverse Polarity. Equipped with Automatic Voltage Regulation (AVR), Intelligent Power Management (IPM), Intelligent Fan Control (IFC) and Galvanized Isolation for input and output.
Product Description

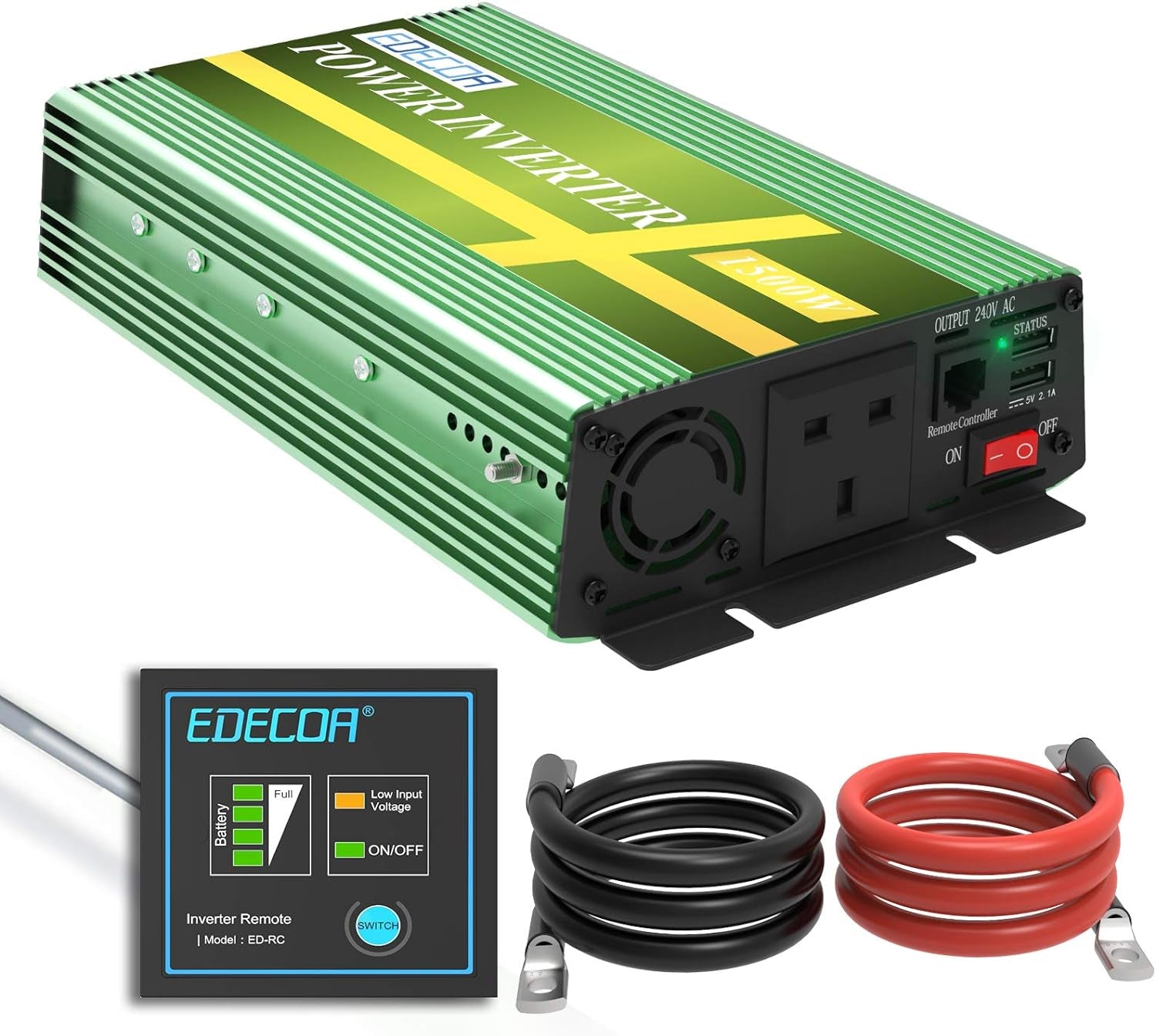

YOU WILL GET
- 1 x Manual
- 1 x Inverter
- 1 x Wrench
- 1 x Remote Controller
- 1 x Controller Cable (2m)
- 1 x Grounding Cable
- 2 x Battery Cables (16mm²)
- 2 x Safety Terminals
GREEN ENERGY-SAVING INVERTER
No-load current consumption is <0.5A.
This Modified Sine Wave 1500W 12V Power Inverter is designed for 12 Volt battery and is reliable for Resistive Loads.
Can provide you 1500 watt to 3000 watt power for the AC equipment within the power range.

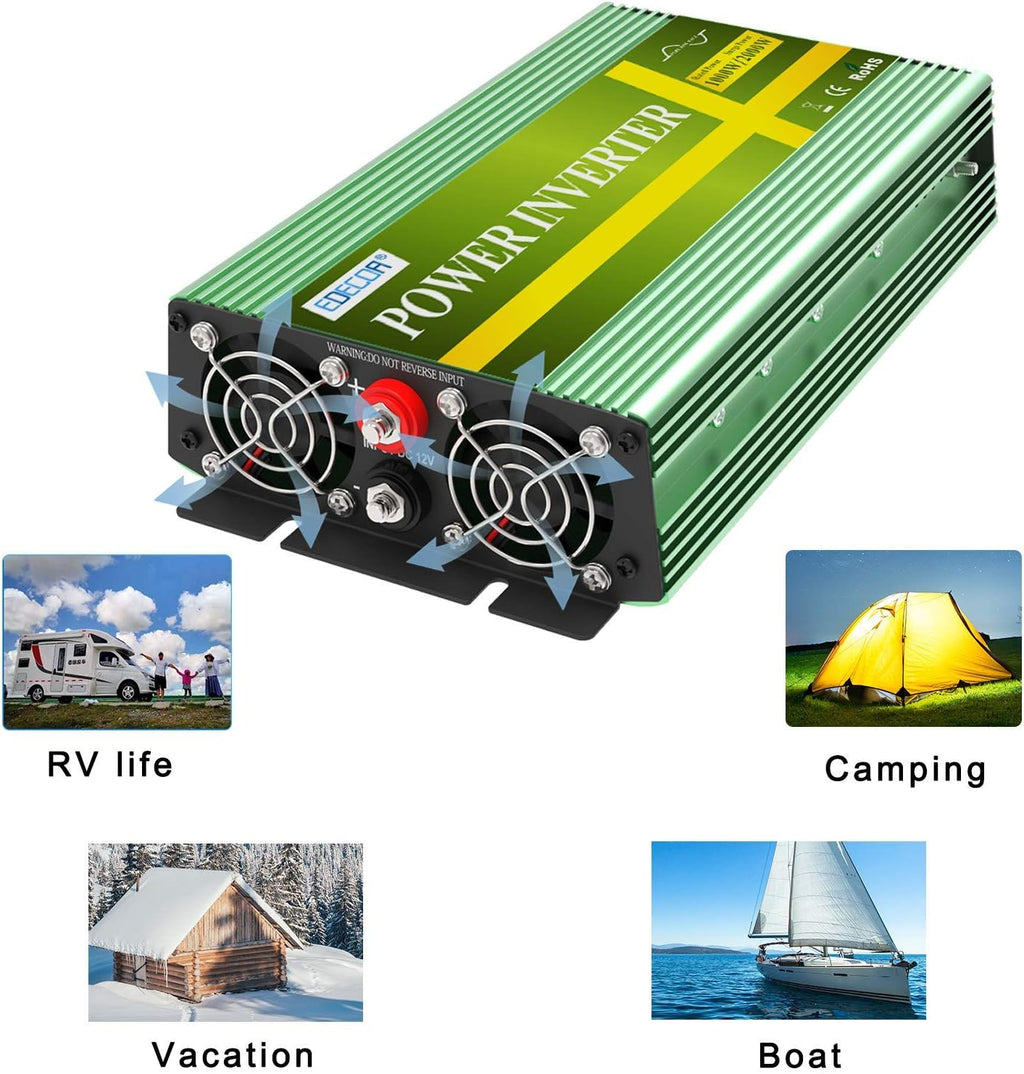

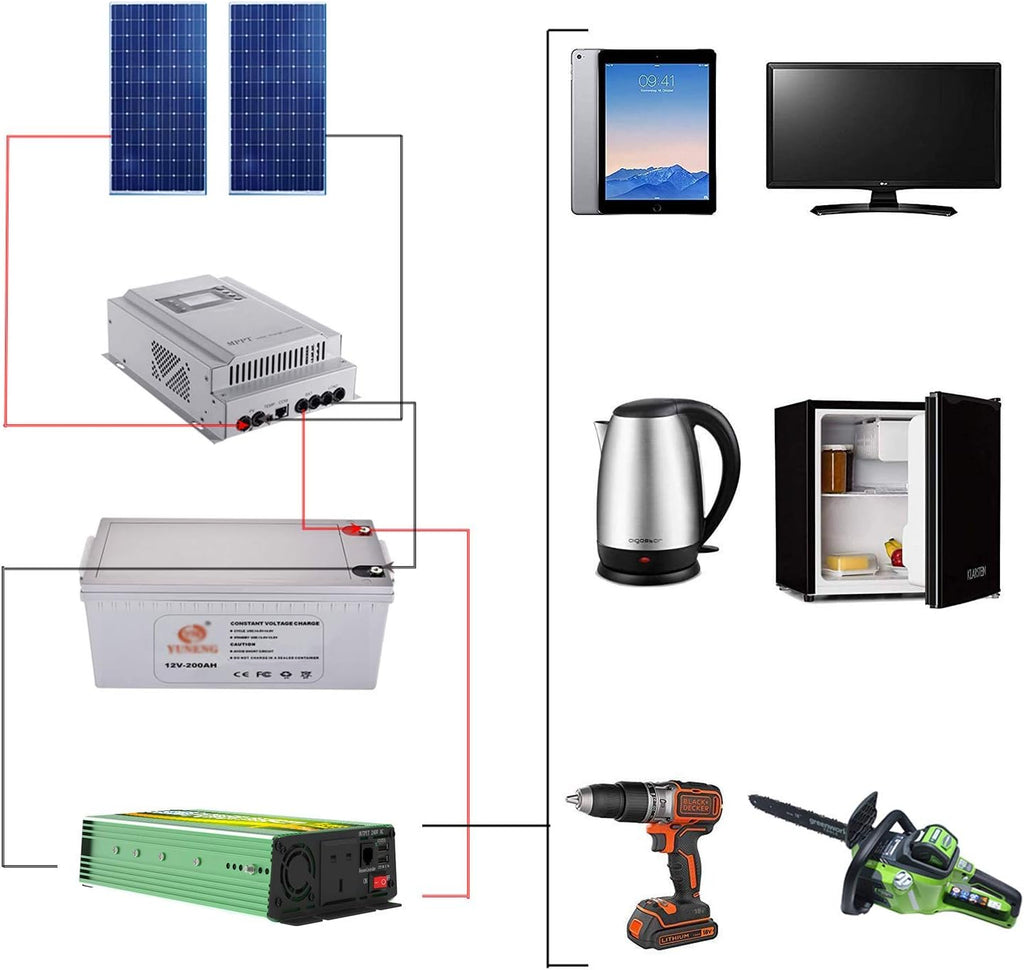

Ideal for RV, Boat, Vehicle Battery, Solar System and most other off grid applications.

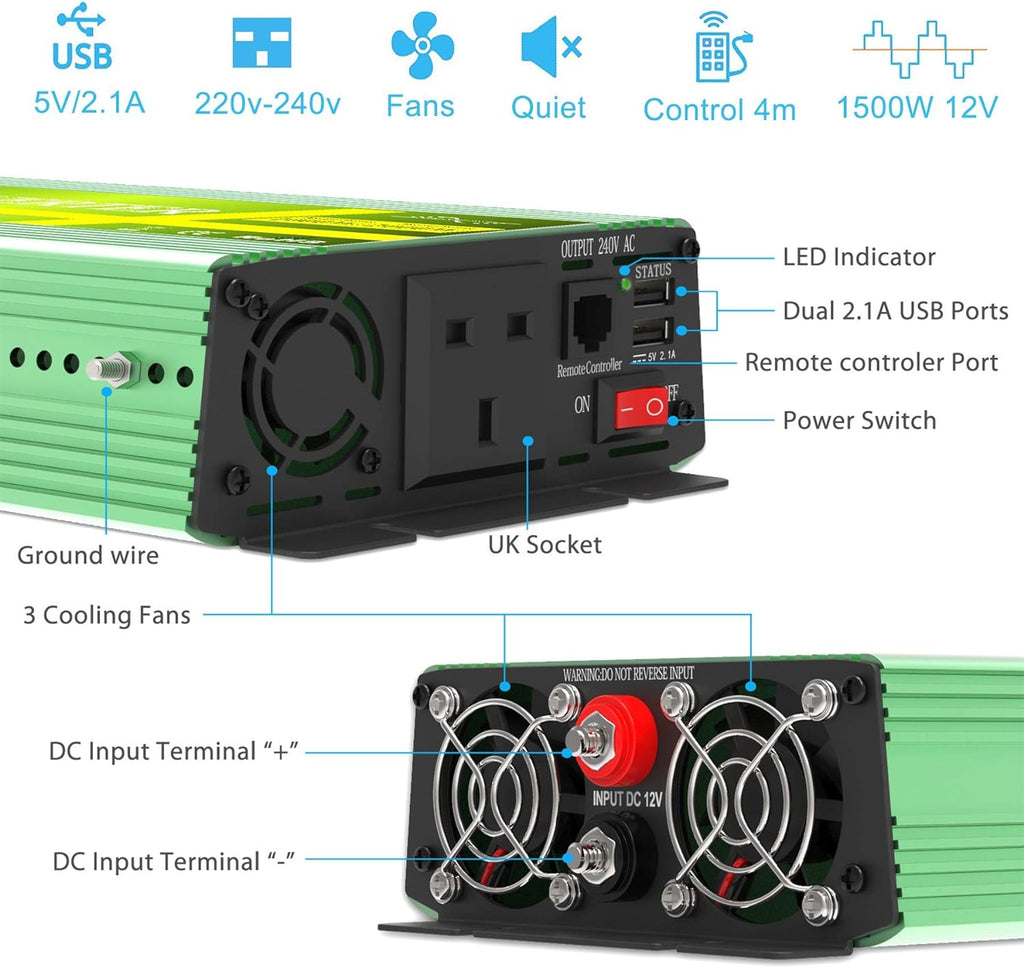

- 1x LED Indicator.
- 3x Silent Cooling Fans.
- 2x USB Ports - 5V 2.1A per port.
- 1x UK Socket - for 220V / 230V / 240V appliances.
- Anodized Aluminum Protective Cover.
- Galvanized Isolation for input and output.
- Inverter Efficiency ＞90%
EDECOA POWER INVERTER 12V 1500W MSW
| Output Wave Form | Modified Sine Wave |
| Continuous Output Power | 1500W |
| Max Output Power | 3000W(<10ms) |
| Input Voltage (DC) | 12V |
| Output Voltage (AC) | 220V - 240V |
| No Load Current Draw | 0.5A |
| Frequency | 50Hz / 60Hz |
| Inversion Efficiency | 90% |
| Net Weight | 1.7 kg |

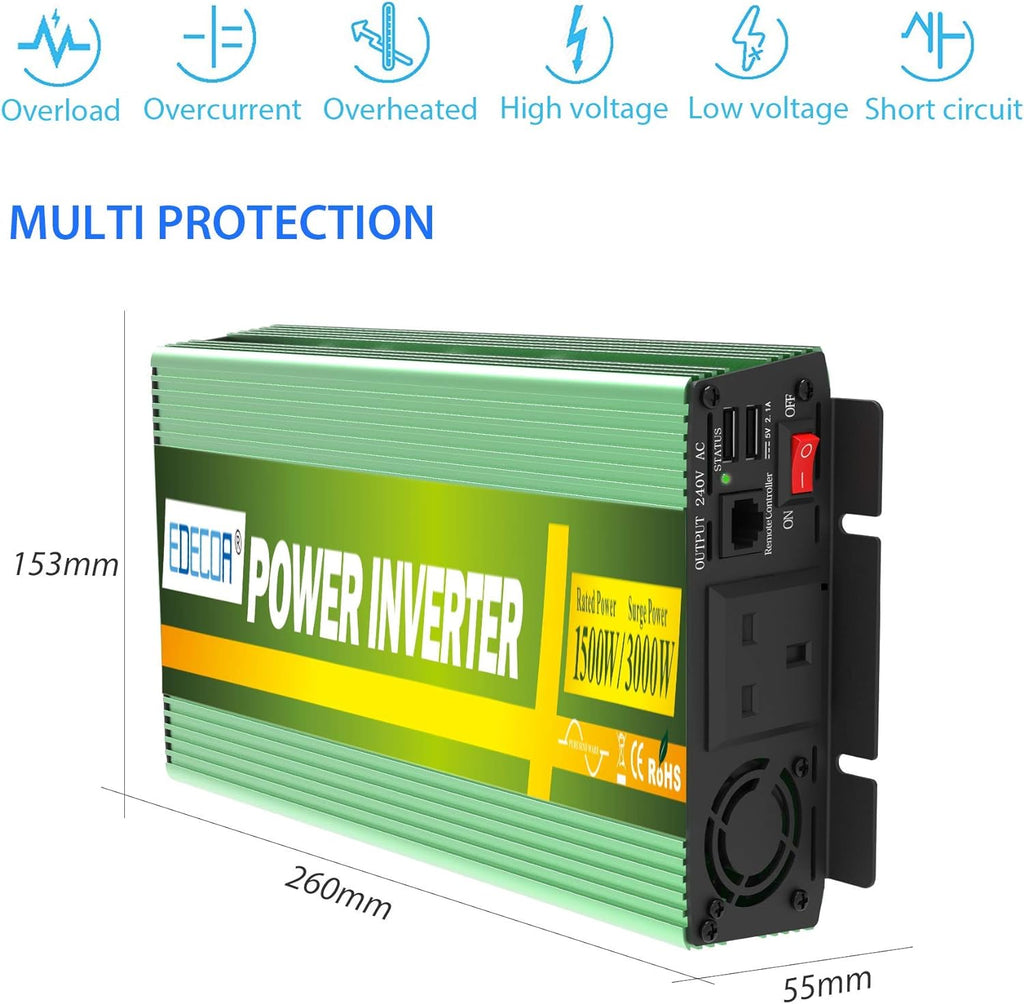

| Size | 260x153x55 mm |
| Certification | CE, EMC, LVD |
INTELIGENT FAN CONTROL
- If the inverter exceeds 45℃,the cooling fans will start automatically.
- If the temperature exceeds 75℃, the inverter will stop working to protect the machine.
- When the temperature returns to the normal range, the inverter will automatically recover.
- This function is good for heat dissipation and saving battery power.

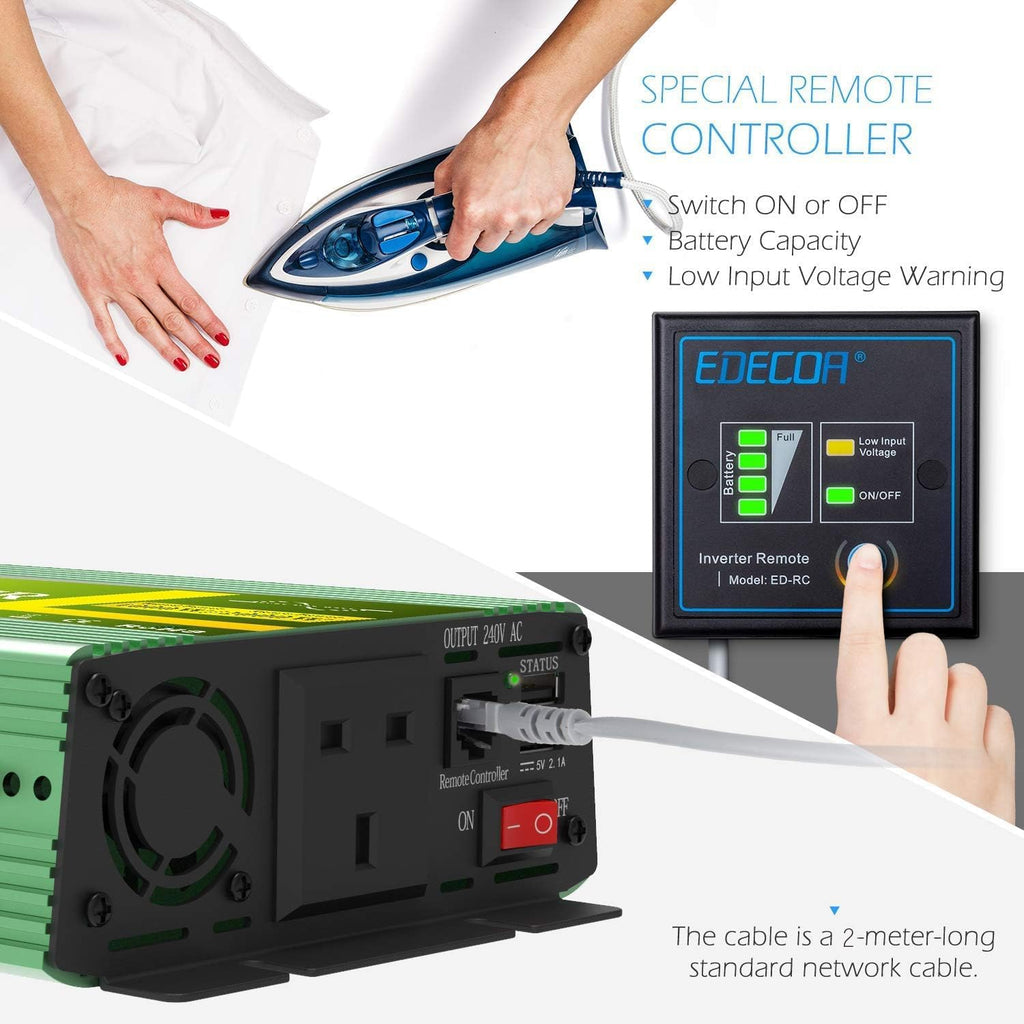

FUNCTION OF REMOTE CONRTOLLER
- Turn ON or OFF the power inverter.
- Check the capacity of battery.
- Indicator light of Low input voltage.
- The remote controller cable with RJ45 port is a 4-meter-long standard network cable.
- Therefore, you can replace a longer cable according to the usage (but no more than 10 meters).
MULTI-PROTECTION
- Soft Start Function: YES
- Overload Protection: YES
- DC Input Low / High Voltage Protection: YES
- DC Input Reverse Polarity Protection: YES
- AC Output Short Loaded Protection: YES
- Over Heat Protection: YES (167℉/75℃)
INPUT VOLTAGE RANGE
- Working Voltage Range: 10-15V
- Low-voltage Alarm Range: 10.5V±0.3V
- Under-voltage Cut-Off Voltage Range: 9.7V±0.3V
- Over-voltage Cut-Off Voltage Range: 15.5V±0.3V
NOTE !!!!!
- 12V inverter must be connected to the 12V power supply.
- Modified Sine Wave Inverters are reliable for Resistive Loads. If you need to run inductive loads or precision communication equipments, it is recommended to use a Pure Sine Wave Inverter.
